This section describes how to update or modify the Default Gateway.

On the table list containing the network gateways, hover over the desired IP address and click on the gear icon with the configure title. It should open a form like the one shown in the image below.

Configure Gateway Settings #

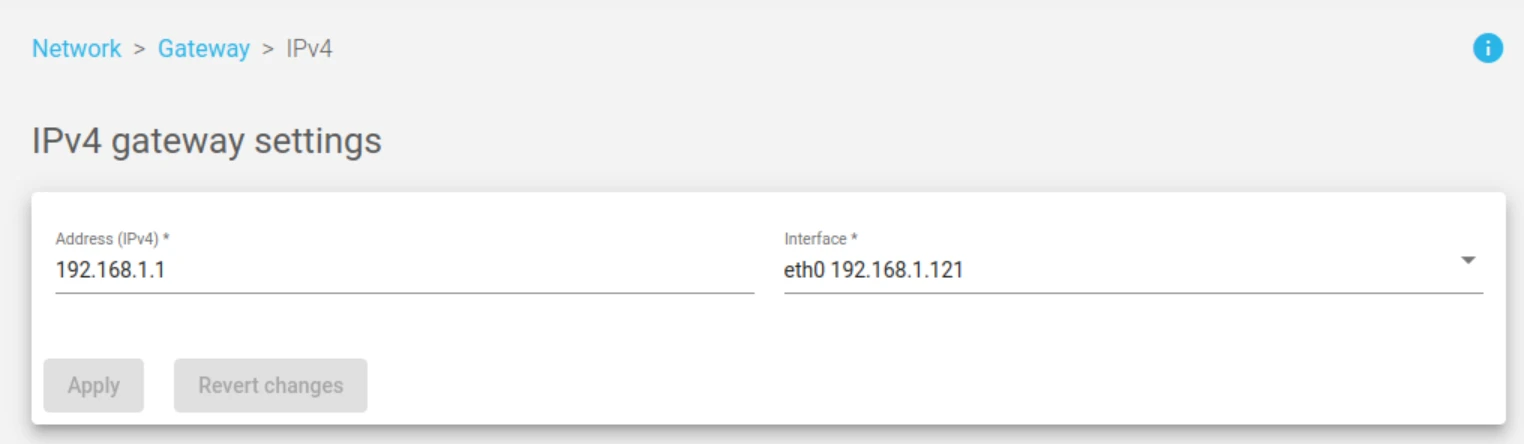

The figure below shows a form used to modify the Default Gateway.

A brief description of the fields to use when modifying the Default Gateway.

Address. The network-layer IP address of the default gateway to be used.
Interface. Select the interface that will be used for outbound traffic and is not assigned to any network already configured in the load balancer.

To save the changes, click the Apply button. When the configuration is updated the default gateway will be ready for use.
