Farms Graph Stats #

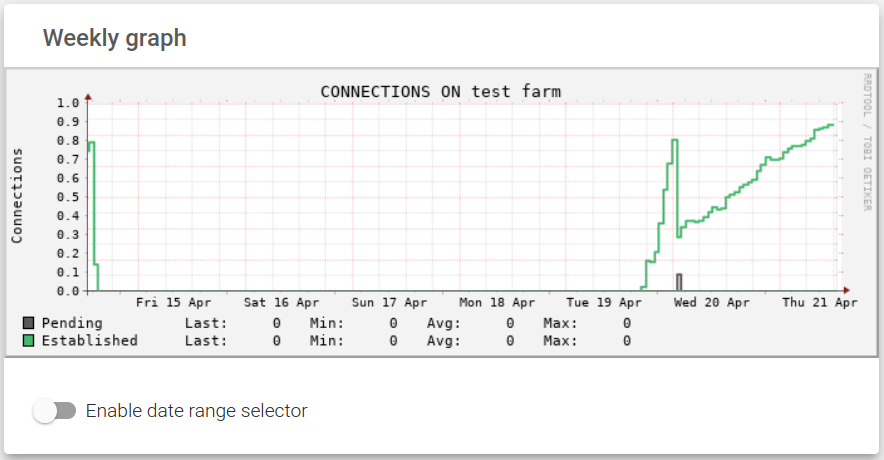

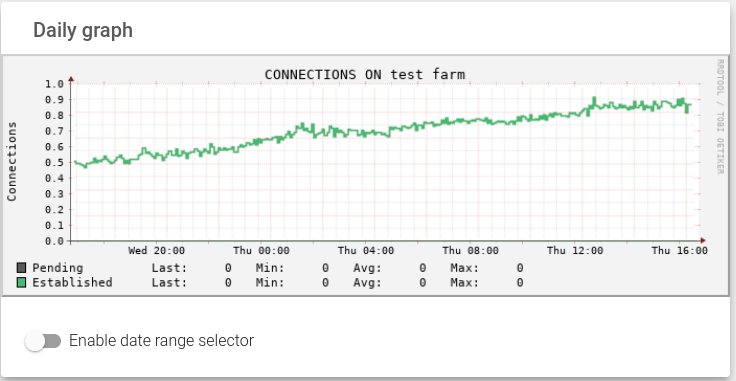

This section shows the monitoring graph history of established and pending connections of current farms in four various periods: last day, last week, last month and last year.

The accounted connections are:

Established. The connections are confirmed and marked as ESTABLISHED. For L4xNAT profile farms, this means there’s a connection to the backend (as it behaves like a router). For HTTP profiled farms this means there’s a connection to the virtual server.
Pending. Connections marked as SYN have not been confirmed yet. An increase means a higher rate of requests received and are not served.

Each graph also indicates the last value gathered, i.e. minimum, maximum and average values, and a flag to select a range in the graph may be used if the Enable data range selector command is activated.

zevenet lslb lb farm stats graphs

zevenet lslb lb farm stats graphs

Next step, see the backends stats.
